PNEUMATIC CONVEYING SYSTEM

EIC is, Pneumatic Conveying System Manufacturer, Pneumatic Conveying System Supplier, Pneumatic Conveying System Manufacturer In India, Pneumatic Conveying System Supplier In India, Pneumatic Conveying System Suppliers, Pneumatic Conveying System Manufacturers, Pneumatic Conveying system Manufacturers in India, Pneumatic Conveying Suppliers in India

We supply pneumatic conveying system for all applications,

We are pleased to inform you that we have just commissioned a Ash handling System comprising conveying of ash from 5 nos of collection points including that of boiler, bag filters, Economizer/APH to Silo for storage. Silo has also been supplied by us and at silo vent filter is mounted. From silo material is discharged to ash conditioner, so that dust should not fly and ash is further discharged from Silo vide rotary air valve and ash conditioner to further disposal.

Pneumatic conveying systems are particularly versatile. A very wide range of materials can be handled and they are totally enclosed by the system and pipeline

We generally prefer to supply normally dense phase pneumatic conveying system for fly ash and various types of dust from esp, bag filters etc. We have very innovative design with very low pressure drop, comprising blow tanks, silos, etc We can take the system on turnkey basis, we can even supply collecting Silos, dust conditioning system or dust packaging system, bag filters along with the basic pneumatic conveying system

Synopsis

Pneumatic conveying systems are basically quite simple and are eminently suitable for the transport of powdered and granular materials in factory, site and plant situations. The system requirements are a source of compressed gas, usually air, a feed device, a conveying pipeline and a receiver to disengage the conveyed material and carrier gas. The system is totally enclosed, and if it is required, the system can operate entirely without moving parts coming into contact with the conveyed material. High, low or negative pressures can be used to convey materials. For hygroscopic materials dry air can be used, and for potentially explosive materials an inert gas such as nitrogen can be employed. A particular advantage is that materials can be fed into reception vessels maintained at a high pressure if required

Pneumatic conveying systems are particularly versatile. A very wide range of materials can be handled and they are totally enclosed by the system and pipeline. a hopper or silo in one location to another location some distance away. Considerable flexibility in both plant layout and operation are possible, such that multiple point feeding can be made into a common line, and a single line can be discharged into a number of receiving hoppers. With vacuum systems, materials can be picked up from open storage or stockpiles, and they are ideal for clearing dust accumulations and spillages. Pipelines can run horizontally, as well as vertically up and down, and with bends in the pipeline any combination of orientations can be accommodated in a single pipeline run. Conveying materials vertically up or vertically down presents no more of a problem than conveying horizontally. Material flow rates can be controlled easily and monitored to continuously check input and output, and most systems can be arranged for complete automatic operation.

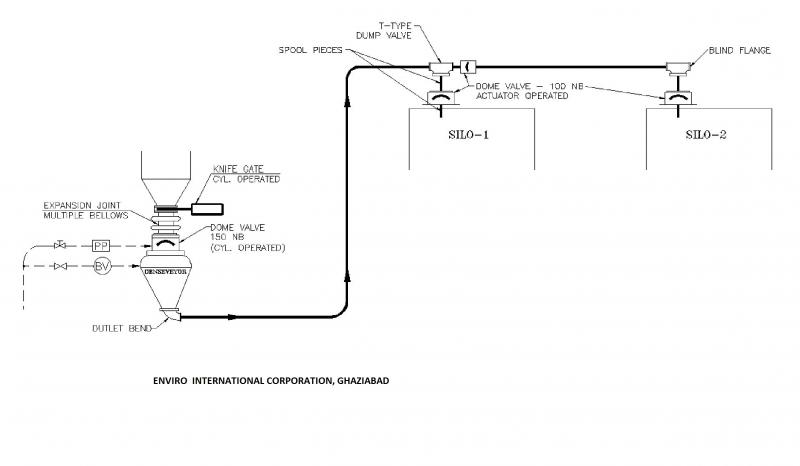

DENSE PHASE CONVEYING SYSTEM

The Dense Phase Conveying System is the most advanced, efficient and most reliable system to convey material with wide range of capacities of dry bulk solids up to 200 TPH, with terminal distances exceeding - 1,200 meters. This system includes weighing, batching, blending, lump breaking, storage, master control equipments etc. through Dense Phase Conveying System for bulk material handling in the plant.

Dense Phase System is used to push and convey the highly dense concentration of bulk solids materials effectively at a low constant speed inside the conveying pipe lines. Any type of material (heavy, abrasive or, fragile, crystalline or granular ) can be conveyed without causing the degradation due to low velocity and less wear to the system components. Dense Phase System is reliable, flexible and maintenance free due to lower quantum of moving parts and it can also be easily installed at location, where space availability constraint is there.

The low volume of air is utilized at the ash / transporting vessel to convey the material into the line at maximum density while the balance air quantity is added along the conveying line through coupling unit provided at starting on the pipeline to overcome the pipeline frictional losses thus pumping material at the highest obtainable efficiency. The Coupling Unit ensures a uniform gradient and helps to maintain the material at maximum density. It also helps in maintaining the desired velocity, and over coming the pipeline / bend's friction and helps to restart the flow of blocked material if any along the conveying line regardless of length. These Coupling Unit also helps in minimizing the compressed air consumption and pipe abrasion.

Lean Phase system

Lean Phase system works on low air pressure, herein material is conveyed in suspension in the flowing air. To keep the material in suspension in the pipeline it is necessary to maintain a minimum value of conveying line inlet air velocity that, for most materials, is of the order of 13–15 m/s Pneumatic conveying systems are particularly versatile. A very wide range of materials can be handled and they are totally enclosed by the system and pipeline.

Enviro Is, Pneumatic Conveying System Supplier, Pneumatic Conveying System Manufcaturer In India, Pneumatic Conveying System Supplier In India,Pneumatic Conveying System Manufacturer, Pneumatic Conveying System Suppliers, Ash Handling System Supplier, Supplier of Pneumatic Conveying System, Manufacturer of Pneumatic Conveying System, Pn. Conveying system Manufacturer, Pn. System Conveying Supplier. Ash Handling System Manufacturer, Pneumatic Conveying System Suppliers, Pneumatic Conveying System Manufacturers,

SILO PARTS OF PNEUMATIC CONVEYINGS


Silo At one of locations.

After pneumatic conveyong of material, is is stored in Silo and from Silo, material is being loaded in a truck from silo, its video connection
